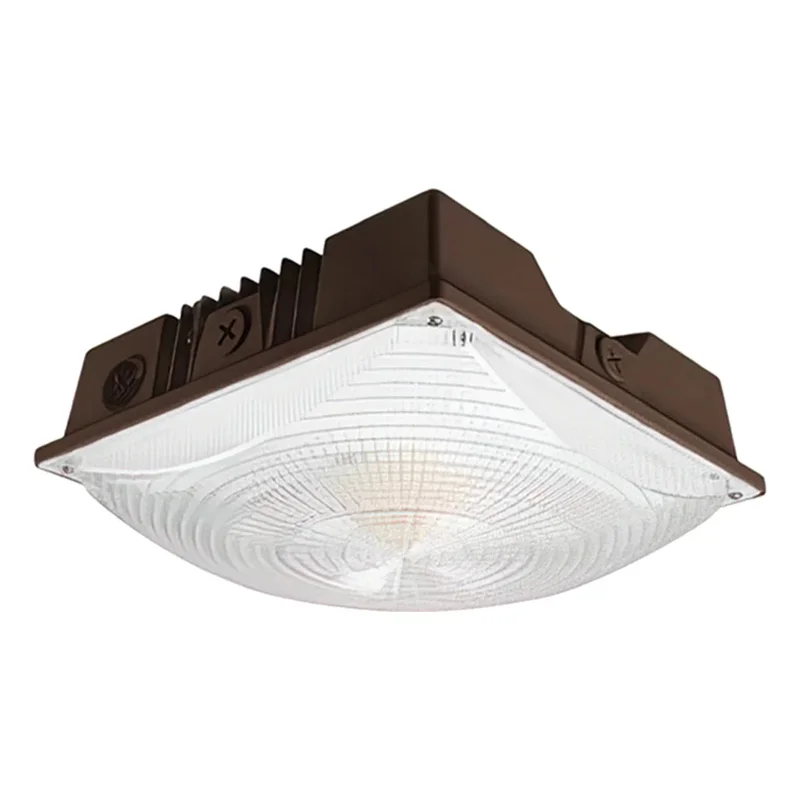

Sylvania Dual Selectable Square Canopy Light 9000 Lumens 60W Selectable CCT 120-347V Bronze

Description

Sylvania Dual Selectable Square Canopy Light – 60W Configuration

The Sylvania SYLV-66412 is a versatile canopy light offering 60 watts of power and 9000 lumens of output. It supports 120-347V input, making it suitable for a wide range of applications. This fixture is DLC 5.1 Premium listed, ensuring high energy efficiency and eligibility for utility rebates.

Key Features

• Dual Beam Optics: Seamlessly meets both garage and canopy lighting requirements without the need for switches or lens swaps.
• Selectable CCT: Offers color temperature options of 3000K, 4000K, and 5000K for customizable lighting.
• Embedded Uplight: Reduces the ‘cave effect’ for a more welcoming environment.
• Controls Ready: Includes a sensor receptacle for field-installable standalone and LEDVANCE LINK sensors.
• Photocell Integration: Features an integrated photocell for dusk-to-dawn operation.
• Surge Protection: Equipped with 6kV surge protection for enhanced reliability.
• Dimmable: Supports 0-10V dimming for adjustable light levels.
• Long Lifespan: Rated for 100,000 hours (L70) at 25°C, ensuring long-term performance.
• Construction: Bronze finish with IP65 rating for wet locations, ensuring durability.
• Mounting Options: Suitable for surface or pendant mounting, providing installation flexibility.

Typical Applications

• Parking Garages
• Canopies
• Warehouses
• Loading Docks
• Outdoor Walkways

Performance & Light Output

This fixture delivers up to 9000 lumens with an efficacy of up to 150 LPW. It features a CRI greater than 80, ensuring accurate color rendering and a welcoming ambiance.

Electrical & Controls

Operates on 120-347V with a power factor greater than 0.9 and THD less than 20%. It supports 0-10V dimming and includes a sensor receptacle for optional controls.

Construction & Durability

Constructed with a robust bronze finish, the fixture is IP65 rated for wet locations, ensuring reliable performance in harsh environments.

Installation & Mounting

Designed for surface or pendant mounting, this fixture includes all necessary hardware for easy installation. Optional mounting plates are available for enhanced versatility.

What’s Included

• Canopy Light Fixture
• Installation Hardware
