Description

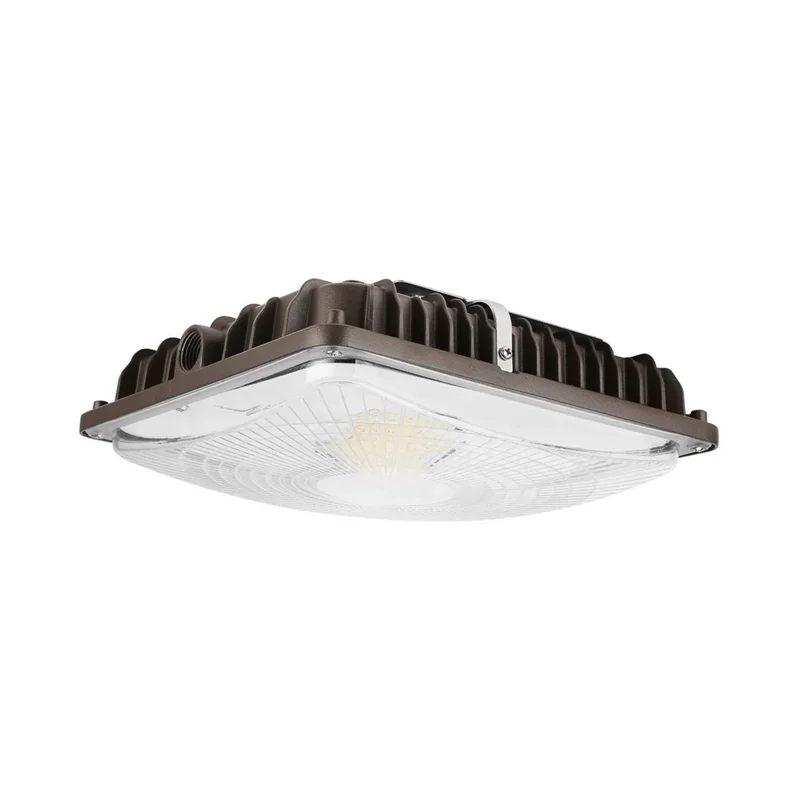

Sylvania UltraLED CCT Selectable Canopy 4B Garage Light – 75W Configuration
The Sylvania SYLV-61310 is a 75W garage light delivering 9375 lumens with a selectable CCT of 3000K, 4000K, or 5000K. It operates on 120-277V and is DLC Premium certified, making it ideal for energy-efficient lighting in parking garages and covered walkways.
Key Features
- High Efficacy: Achieves up to 135 lumens per watt, meeting DLC requirements.
- CRI: Greater than 80, ensuring accurate color rendering.
- Durable Finish: Bronze finish for a sleek appearance and durability.
- Dimmable: 0-10V dimming capability for adjustable light levels.
- Long Lifespan: Rated for 100,000 hours (L70) for extended use.
- Power Factor: Greater than 90% for efficient power usage.
- THD: Less than 20% for reduced electrical distortion.
- Operating Temperature: Functions in temperatures from -30°F to +122°F.
- Mounting Options: Can be mounted to a recessed outlet box or pendant mounted.
- Certifications: cULus, RoHS, FCC, and DLC Premium certified.
Typical Applications
- Parking Garages
- Covered Walkways
- Exterior Corridors
- Stairwells
- Industrial Facilities
Performance & Light Output
This fixture provides a high light output of 9375 lumens with a CRI greater than 80, ensuring excellent visibility and color accuracy. It offers selectable CCT options for versatile lighting environments.
Electrical & Controls
Compatible with 120-277V, the fixture supports 0-10V dimming, allowing for flexible lighting control. It maintains a power factor greater than 90% and THD below 20%, ensuring efficient operation.
Construction & Durability
Constructed with a robust bronze finish, the fixture is IP65 rated for protection against dust and water. It is suitable for wet locations and operates reliably in a wide temperature range.
Installation & Mounting
The fixture can be mounted to a recessed outlet box or pendant mounted, providing flexibility in installation. Optional mounting accessories are available for purchase separately.
What’s Included
- UltraLED CCT Selectable Canopy 4B Garage Light
