Description

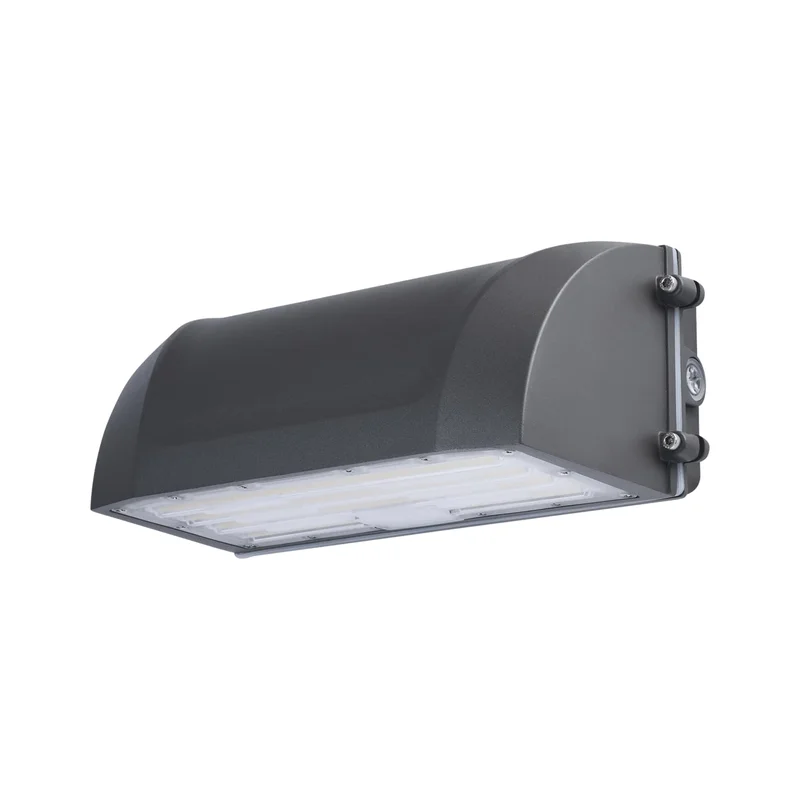

Satco|Nuvo Full Cutoff LED Wall Pack — Selectable 80W/60W/45W
The 65-941 is an architectural-grade full cutoff LED wall pack delivering up to 11,904 lumens. Operating on a universal 120-277V input, this selectable 80W fixture provides targeted downward illumination to meet strict exterior compliance requirements. It ensures highly efficient and customizable perimeter security lighting for commercial facilities.
Key Features
- Cutoff Classification: Full cutoff design strictly eliminates upward light trespass.
- Wattage: Field-selectable 80W, 60W, and 45W power outputs.
- Input Voltage: Operates efficiently across universal 120-277V circuits.
- Photocell: Integrated bypassable dusk-to-dawn photocell for automated control.
- Lumen Output: Generates a versatile 6,972 to 11,904 lumens.
- Color Temperature: Selectable 3000K, 4000K, and 5000K settings.
- Dimming: Standard 0-10V dimming capabilities for advanced energy savings.
- Surge Protection: Built-in 4KV defense guards against grid fluctuations.
- Housing Material: Heavy-duty die-cast aluminum with a bronze finish.
Typical Applications
- Commercial building perimeters
- Warehouse loading docks
- Educational facility exteriors
- Hospitality pathways
- Retail storefronts
Performance & Light Output
Generating up to 11,904 lumens, this luminaire features a precise 90-by-100-degree beam angle that pushes light strictly downward. With field-selectable color temperatures and an 80 CRI, it ensures accurate color rendering and visual clarity for perimeter security over a robust 50,000-hour lifespan.
Electrical & Controls
Powered by a 120-277V driver, it delivers smooth 0-10V dimming with a power factor greater than 0.9 and total harmonic distortion below 9 percent. It features built-in 4KV surge protection to safeguard internal components and includes a bypassable photocell for immediate dusk-to-dawn automation.
Construction & Durability
Housed in rugged die-cast aluminum with a corrosion-resistant bronze finish and an opaque, impact-resistant polycarbonate lens. It carries a wet location IP65 rating, ensuring complete protection against driving rain and heavy dust in extreme ambient temperatures from -40 to 104 degrees F.
Installation & Mounting
Engineered for secure exterior wall mounting directly over standard electrical junction boxes. The fixture features a hinged design and accessible wiring compartment, allowing electrical contractors to perform rapid, hands-free installations and field adjustments.
What’s Included
- LED Full Cutoff Wall Pack
- Integrated Photocell
- Mounting Hardware
