Static White LED Channel Ray Modules – 3000K, 170″ String, 20 Modules, IP66 Rated

Description

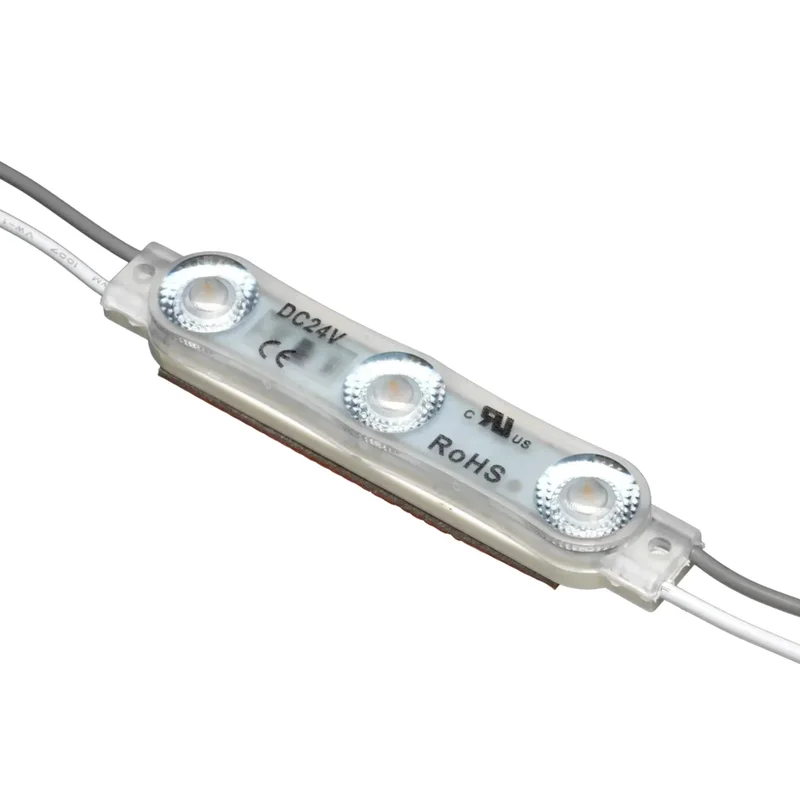

Premium LED Channel Ray Modules for Sign & Display Lighting

American Lighting’s Static White Stranded Channel Ray Modules deliver professional-grade illumination for signage, displays, and architectural applications. Engineered with high-quality optics, each module creates broad, uniform lighting without hotspots—perfect for trade shows, retail displays, and temporary installations.

Key Features

• 3M™ Adhesive Backing – Easy, secure installation and removal for temporary applications
• Maximum Flexibility – Up to 20 modules per string, 170″ total length
• IP66 Rated – Suitable for wet locations and outdoor use
• cURus Recognized – Certified for safety and reliability
• 50,000 Hours Rated Life – Long-lasting performance with minimal maintenance
• Non-Dimmable – Consistent, reliable output

Technical Specifications

• LEDs Per Module: 3
• Voltage: 24V DC
• Wattage: 1.08W per module
• Lumens: 68Lm per module
• Color Temperature: 3000K (Warm White)
• CRI: 70+
• Beam Angle: 170°
• Operating Temperature: -25°C (13°F) to 60°C (140°F)
• Mounting: Surface mount with 3M™ Tape
• Module Spacing: 5″ (130mm)
• String Length: 170″ (20 modules)

Applications

Ideal for trade show displays, retail signage, channel letters, lightboxes, architectural accent lighting, and any application requiring versatile, high-quality LED illumination with easy installation.
