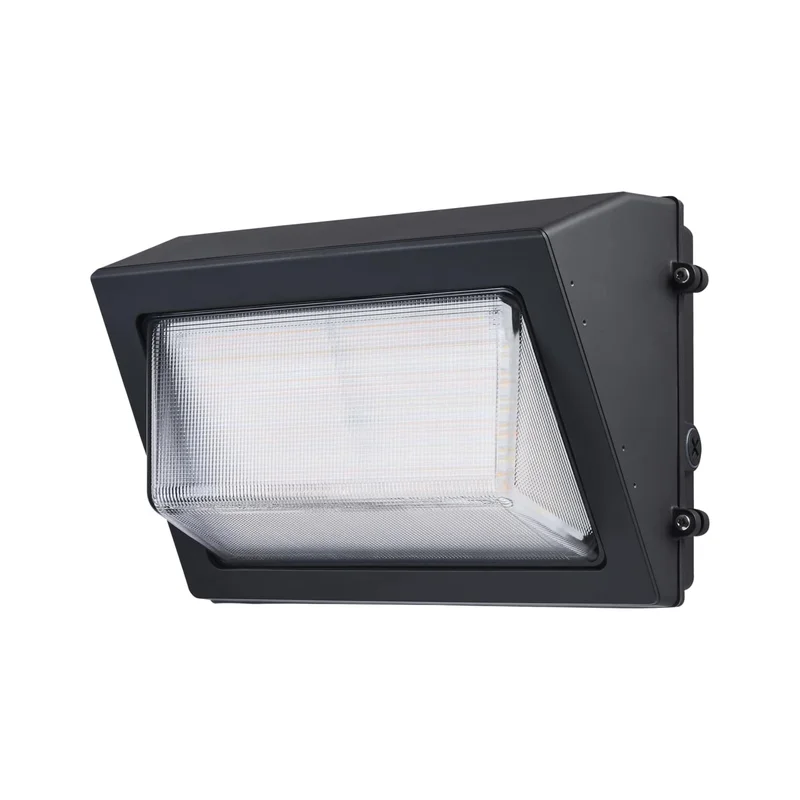

Satco|Nuvo Beam Selectable LED Wall Pack, 29-100W Selectable, 3000K/4000K/5000K, Up to 15305lm, 120-347V, IP65, Bronze

Description

Satco|Nuvo Beam Selectable LED Wall Pack — 60W & 100W, Selectable CCT, 120-347V, Bronze

The Satco|Nuvo Beam Selectable LED Wall Pack is a rugged, high-performance commercial LED wall pack engineered to deliver precise, adaptable perimeter illumination for building exteriors, loading docks, pathways, and storefronts. Available in a 60W (65-1500) and a 100W (65-1501) configuration, both models feature an innovative beam selectable design that switches between 60°, 90°, and 110° distributions on-site. Field-selectable wattage, selectable 3000K/4000K/5000K CCT, 0-10V dimming, and 6kV surge protection are standard across both models. The clear borosilicate glass lens and IP65 / IK08 ratings ensure long-term outdoor durability. Optional accessories — a cutoff shield (65-1503) and protective steel cage (65-1502) — are available separately.

Satco|Nuvo Beam Selectable Wall Pack Features

• Beam Selectable Technology: Integrated optics switch between 60° (focused/cutoff), 90° (intermediate), and 110° (wide forward throw) distributions — one fixture adaptable to any perimeter lighting layout.
• Two Wattage Tiers: Choose 60W (9,193lm) or 100W (15,305lm) to match mounting height and illumination requirements.
• Field-Selectable Wattage: 60W model: 60W/40W/29W; 100W model: 100W/80W/60W — set on-site to fine-tune energy consumption without rewiring.
• Selectable CCT: Field-adjustable 3000K, 4000K, and 5000K color temperatures via on-fixture switch.
• High Efficacy: Up to 153 LPW (60W model) with 80 CRI across both configurations.
• Borosilicate Glass Lens: Clear, impact-resistant glass lens maintains optical clarity and resists yellowing over time — superior to standard polycarbonate.
• IP65 Wet Location Rated: Complete protection against dust and water jets for reliable outdoor performance.
• IK08 Impact Resistance: Lens and housing rated for protection against physical strikes and vandalism.
• 0-10V Dimming: Full dimming interface for compatibility with commercial lighting control systems.
• Universal Voltage: 120-347V input compatible with standard commercial and higher-voltage industrial systems.
• 6kV Surge Protection: Guards internal components against severe power transients on exterior circuits.
• Optional Accessories: Compatible cutoff shield (65-1503) to minimize light trespass and protective steel cage (65-1502) for added physical defense — sold separately.
• 50,000-Hour Lifespan: L70-rated LED life with a 5-year warranty minimizes maintenance on long-term installations.

Beam Selectable Technology

The integrated beam selectable optics lock into the selected distribution during installation — no additional components required:

• 60° (Focused/Cutoff): Concentrated downward illumination for dark-sky-friendly applications and tight perimeter coverage with minimal light trespass.
• 90° (Intermediate): Balanced distribution for general building perimeter and pathway lighting.
• 110° (Wide Forward Throw): Maximum spread for loading docks, storefronts, and large exterior areas requiring broad coverage.

Wattage Options & Lumen Output

Select the output tier that matches your facility’s mounting height and illumination requirements:

• 60W (65-1500): 60W: 9,193lm at 153 LPW | 40W: ~6,100lm | 29W: 4,225lm — 14.36”×7.45”×9.3”, 8.2 lbs
• 100W (65-1501): 100W: 15,305lm | 80W: ~12,200lm | 60W: 8,660lm — larger form factor

CCT Options: Both models offer 3000K (warm white), 4000K (neutral white), and 5000K (daylight) — selectable on-site to match existing site lighting or architectural requirements.

Typical Applications

• Commercial and industrial building perimeters.
• Loading docks and service area lighting.
• Facility exteriors and security lighting.
• Pathways, entryways, and storefronts.
• Applications requiring optional cutoff or vandal protection accessories.

Performance & Light Output

Both models deliver high-efficacy output — up to 153 LPW — with 80 CRI and field-selectable 60°/90°/110° beam distributions for precise perimeter coverage. The borosilicate glass lens maintains optical clarity without yellowing over time. The 50,000-hour L70 lifespan dramatically reduces re-lamping and maintenance costs versus legacy HID wall packs.

Electrical & Controls

Each model is powered by a robust driver operating on 120-347V AC with a power factor greater than 0.9 and THD below 20%. All configurations include 0-10V dimming and 6kV surge protection for reliable performance on exterior circuits.

Construction & Durability

The heavy-duty die-cast aluminum housing is finished in bronze and fitted with a clear borosilicate glass lens. IP65 rated for complete protection against dust and water jets, and IK08 rated for impact resistance. The fixture operates reliably in extreme ambient temperatures from -40°F to 122°F (-40°C to 50°C).

Installation & Mounting

Designed for secure surface wall mounting. The beam distribution is selected during installation and locks in the chosen 60°, 90°, or 110° position. Optional accessories — cutoff shield (65-1503) and protective steel cage (65-1502) — are available separately for enhanced light control and physical protection.

What’s Included

• Satco|Nuvo Beam Selectable LED Wall Pack — Bronze (wattage selected above)
• Mounting Hardware
