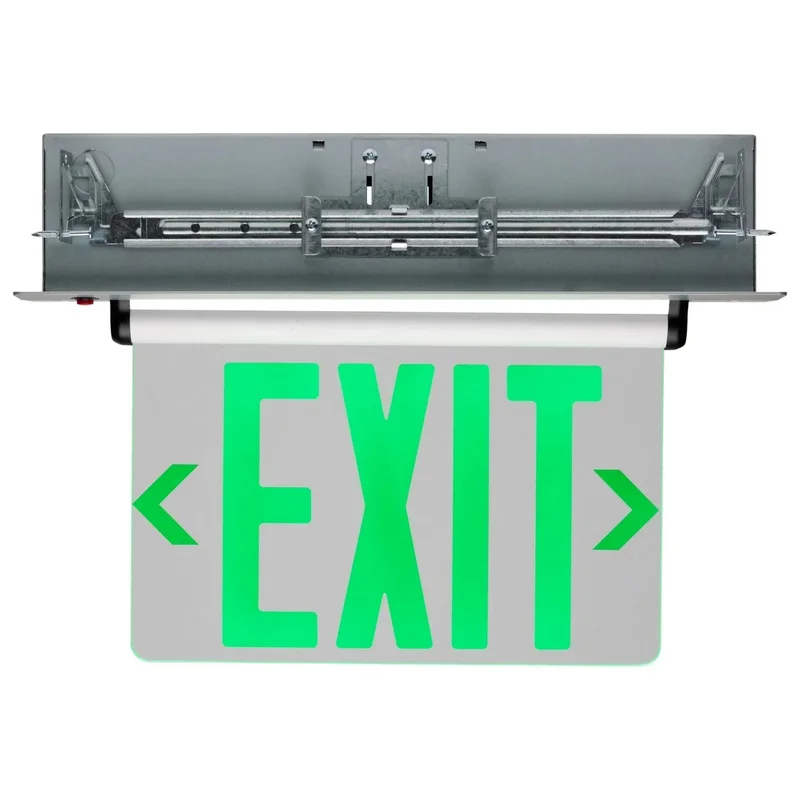

SATCO|NUVO 67-116 Green Edge-Lit Exit Sign 90-Min Backup 120-277V Single Face Clear Finish

Description

SATCO|NUVO 67-116 Edge-Lit Exit Sign — Emergency Capability with 120-277V Input

The SATCO|NUVO 67-116 is a green edge-lit exit sign designed for emergency situations, featuring a 90-minute battery backup and 120-277V input voltage. This single-face exit sign is ideal for ensuring safety compliance in damp-rated environments. With its clear acrylic panel and aluminum housing, it provides reliable performance and visibility.

Key Features

• Battery Backup: Equipped with a 4.8V AA300mAh Ni-Cad battery for 90 minutes of emergency illumination.
• Voltage Compatibility: Operates on a wide range of 120-277V, suitable for various installations.
• Material: Constructed with durable aluminum housing and a clear acrylic face for long-lasting use.
• Mounting: Comes with all necessary mounting hardware for straightforward installation.
• Surge Protection: Built-in 3KV surge protection ensures durability and reliability.
• Letter Specifications: Features 6 in. high letters with a 0.75 in. stroke for clear visibility.
• Operating Temperature: Functions efficiently in temperatures ranging from +10C to +40C.
• Compliance: ULus Certified, Title 20 compliant, and ROHS compliant for safety and environmental standards.

Performance & Illumination

This exit sign delivers an average illuminance of 73cd/m2, ensuring clear visibility with its green LED illumination. The 6 in. letter height and 0.75 in. stroke enhance readability in emergency situations.

Electrical & Battery

Operating on 120-277V, the unit includes a 4.8V Ni-Cad battery that recharges in 24 hours, providing 90 minutes of emergency power. It features built-in surge protection for added safety.

Physical & Installation Details

The aluminum housing and clear acrylic panel offer durability and aesthetic appeal. The unit measures 15.75 in. in length and width, and 11 in. in height, and includes all necessary mounting hardware.

Compliance & Safety

Rated for damp locations, this exit sign is ULus Certified and Title 20 compliant, ensuring it meets stringent safety and performance standards. It is also ROHS compliant, indicating adherence to environmental regulations.

What’s Included

• Edge-Lit Exit Sign
• Mounting hardware and accessories
