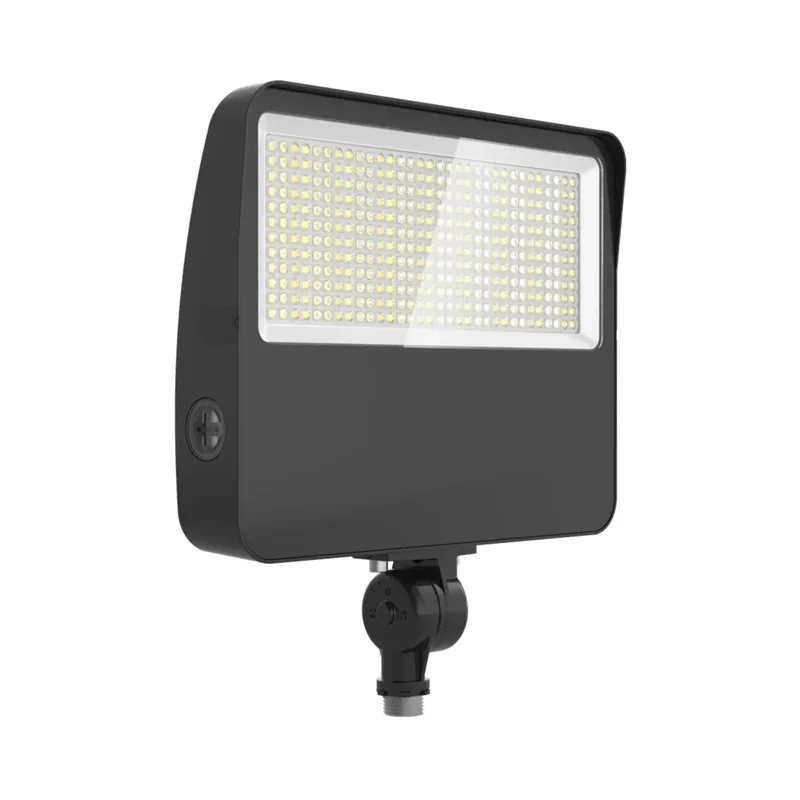

RAB XL22-80 80W Selectable LED Flood Light 12,632 Lumens 50-80W Selectable 30K/40K/50K Adjustable Beam Angle Photocell Knuckle/Trunnion Mount 120-277V Bronze

Description

RAB XL22-80 Field-Adjustable Floodlight — 80W, Selectable CCT & Beam Angle, Photocell, Knuckle/Trunnion Mount, 120-277V, Bronze

The RAB XL22-80 takes versatility to the next level by offering four levels of control in a single, heavy-duty LED flood light. Engineered to deliver true flexibility without compromising performance, this fixture produces up to an incredible 12,632 lumens and allows installers to seamlessly adjust the wattage (80W, 70W, 60W, 50W) and color temperature (3000K, 4000K, 5000K) directly on the job site. It goes a step further by offering field-adjustable optics, allowing you to select between three different NEMA beam angles (7Hx6V, 6Hx6V, 5Hx5V) to perfectly shape the light distribution. Operating on a 120-277V universal driver, it features 0-10V dimming and an integrated On/Off photocell for automated energy savings. With a rugged IP66-rated die-cast aluminum housing and two included mounting kits (knuckle and trunnion), the XL22-80 is the ultimate high-output floodlight for demanding commercial exteriors.

Key Features

• Wattage: Field adjustable to 80W, 70W, 60W, or 50W (defaults to 80W)
• Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K)
• Selectable Beam Angle: Optical field adjustability between 7Hx6V, 6Hx6V, and 5Hx5V (defaults to 7Hx6V)
• Delivered Lumens: 7,273 lumens up to 12,632 lumens depending on selected settings
• Efficacy: Ultra-efficient performance ranging from 128.6 up to 176 Lumens Per Watt (LPW)
• Voltage: 120-277V AC @ 50/60Hz
• Dimming: 0-10V dimming standard, dimming down to 10%
• Photocell: Integrated On/Off photocell included (defaults to “On”)
• Environmental Ratings: IP66 rated for dust and water, UL Listed for wet locations
• Compliance & Certifications: RoHS Compliant, IK06 impact rating
• Warranty: 5-Year limited warranty

Typical Applications

• Building perimeters and facades
• Landscape and large signage lighting
• Commercial parking lots and pathways
• General purpose exterior security lighting

Performance & Light Output

The XL22-80 delivers highly consistent lumen output across all color temperature settings and light distributions. With a massive output of up to 12,632 lumens at its 80W setting, it provides brilliant, targeted illumination for larger spaces. The unique optical field adjustability allows you to narrow or widen the beam spread to fit the exact application. Boasting a 100,000-hour rated LED lifespan based on TM-21 calculations, this fixture dramatically reduces long-term maintenance costs.

Electrical & Controls

This fixture operates on a 120-277V AC input and features built-in surge protection (L-N: 4 kV, L/N-PE: 6 kV). It provides immediate energy savings straight out of the box with an integrated On/Off photocell for dusk-to-dawn operation, which can be easily toggled off via a switch if you prefer manual or centralized control. It also supports 0-10V dimming for seamless integration with advanced lighting control systems.

Construction & Durability

Engineered to withstand harsh environments, the XL22-80 features a heavy-duty die-cast aluminum housing finished in a durable bronze. The fixture is completely sealed with high-temperature silicone gaskets, earning it a rigorous IP66 rating against severe dust and water ingress. The tough polycarbonate lens is IK06 rated, protecting the LEDs against impacts up to 1 joule, and the fixture is rated for cold weather starting down to -40°F (-40°C) and ambient temperatures up to 122°F (50°C).

Installation & Mounting

Designed to reduce SKU inventory and simplify installation, this high-output 80W model comes standard with two complete mounting kits in the box: a pre-installed knuckle mount and a trunnion mount. The robust knuckle mount features a 180° adjustable swivel arm with tilt angles in 10° increments for precise aiming. Alternatively, the trunnion mount accessory can be swapped in for secure flat-surface or arm installations.

What’s Included

• RAB XL22-80 LED Field-Adjustable Floodlight (Bronze)
• Knuckle Mount Kit (Pre-installed)
• Trunnion Mount Kit
• Integrated Photocell
