Description

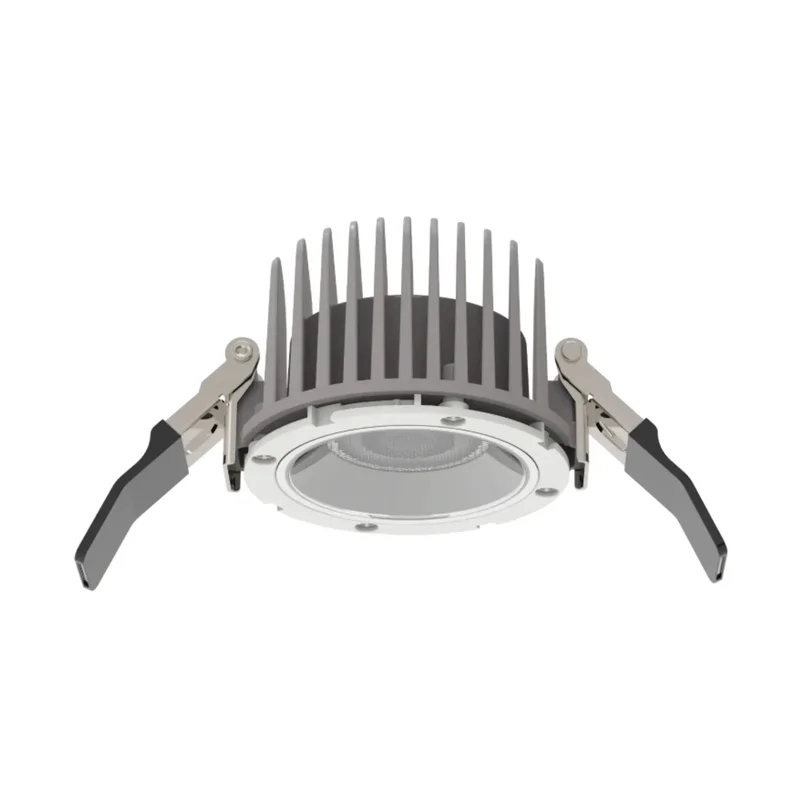

RAB HA4 4 in. Smooth Trim Downlight — 12W / Selectable CCT
The RAB HA4 is a 4-inch LED downlight module designed for recessed ceiling installations. Delivering up to 1060 lumens using only 12 watts, this downlight offers field-adjustable color temperatures ranging from 2700K to 5000K, making it versatile for various lighting needs.
Key Features
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- High CRI: 90
- Wet Rated: Suitable for wet locations
- Energy Star Certified: Meets strict energy efficiency guidelines
- California Title 24 JA8 Compliant: Meets California’s energy efficiency standards
- IC Rated: Safe for direct contact with insulation
- Airtight: Complies with ASTM-E283-04
- Dimmable: Compatible with TRIAC dimmers
- Voltage: 120V
- Power Factor: 0.9
- Operating Temperature: -20°C to 40°C
- Warranty: 5-year warranty
Construction & Aesthetics
The downlight features a smooth trim style and is constructed from durable metal. It is available in black/white color options. Separate snap-in color trims are available for customization.
Electrical & Installation
This downlight operates at 120V and is dimmable with compatible TRIAC dimmers. It is designed for recessed ceiling mounting and is IC rated for safe installation in contact with insulation. For 120-277V applications, the HAD4/D10 driver is available separately.
Light Output & Performance
With a lumen output range of 950-1060 lm and a high CRI of 90, this downlight ensures excellent color rendering and uniform light distribution. It has a 50,000-hour lifespan, ensuring long-term performance.
Typical Applications
- Residential lighting
- Commercial spaces
- Hospitality environments
- Bathrooms
- Outdoor covered areas
