Description

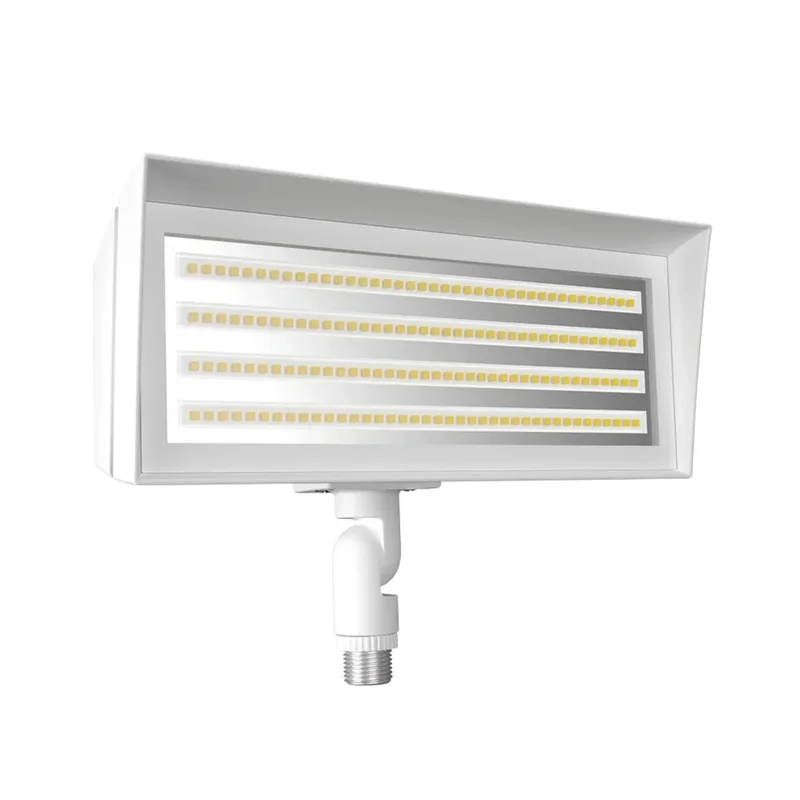

RAB FFLEDSW Small Field-Adjustable Floodlight — 39W, Selectable CCT & Power, Knuckle Mount, 120-277V, White
The RAB FFLEDSW is a highly efficient, small-form LED flood light in a clean white finish, designed for maximum flexibility and rugged outdoor performance. This versatile fixture produces up to 6,243 lumens and allows installers to choose between three power levels (39W, 26W, 18W) and two color temperatures (4000K and 5000K) directly in the field. It features a NEMA 7H x 6V beam spread, providing a broad, powerful wash of light ideal for building facades, signs, and landscape accents. Built for longevity, the FFLEDSW is housed in precision die-cast aluminum with an ultra-clear tempered glass lens and earns a rigorous IP66 rating for superior durability against the elements. With an industry-leading 10-year warranty and a standard 0-10V dimming driver, it is the perfect long-term solution for professional-grade exterior lighting.
Key Features
- Wattage: Field adjustable to 39W, 26W, or 18W (defaults to 39W).
- Selectable CCT: Field adjustable between 4000K (Neutral) and 5000K (Cool).
- Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
- NEMA Type: Wide NEMA 7H x 6V beam spread.
- Mounting Type: Robust knuckle mount with a 180° adjustable swivel arm and 10° tilt increments.
- TAA Compliant: Trade Agreements Act compliant product.
- Delivered Lumens: Up to 6,243 lumens depending on selected settings.
- Environmental Ratings: IP66 rated for dust and water; UL Listed for wet locations.
- Warranty: Industry-leading 10-year, no-compromise warranty.
Typical Applications
- White-themed building perimeters and facade illumination
- Landscape and flag pole lighting
- Commercial signage and billboards
- General high-output exterior security lighting
Performance & Light Output
The FFLEDSW provides high-intensity, uniform light with a maximum output of 6,243 lumens. Its advanced optical design ensures excellent color consistency through 7-step MacAdam Ellipse binning. With long-life LEDs rated for 100,000 hours, this fixture significantly reduces maintenance and energy costs over time.
Electrical & Controls
Equipped with a Class 2 constant current driver and 4kV surge protection, the FFLEDSW is built for stable performance on 120-277V systems. It supports standard 0-10V dimming for integration with motion sensors or control systems to further enhance energy savings.
Construction & Durability
The fixture features a rugged die-cast aluminum housing finished in durable white and sealed with high-temperature silicone gaskets. Its IP66 rating confirms total protection against dust and powerful water jets, safely operating in extreme temperatures ranging from -40°F (-40°C) up to 104°F (40°C).
Installation & Mounting
This model includes an integrated heavy-duty knuckle mount, allowing for quick installation on standard boxes or conduit and precise tilting to direct light exactly where it is needed. It is suitable for mounting within 4 feet of the ground.
What’s Included
- RAB FFLEDSW LED Field-Adjustable Floodlight (White)
- Integrated Knuckle Mount
- 10-Year Manufacturer Warranty
