Description

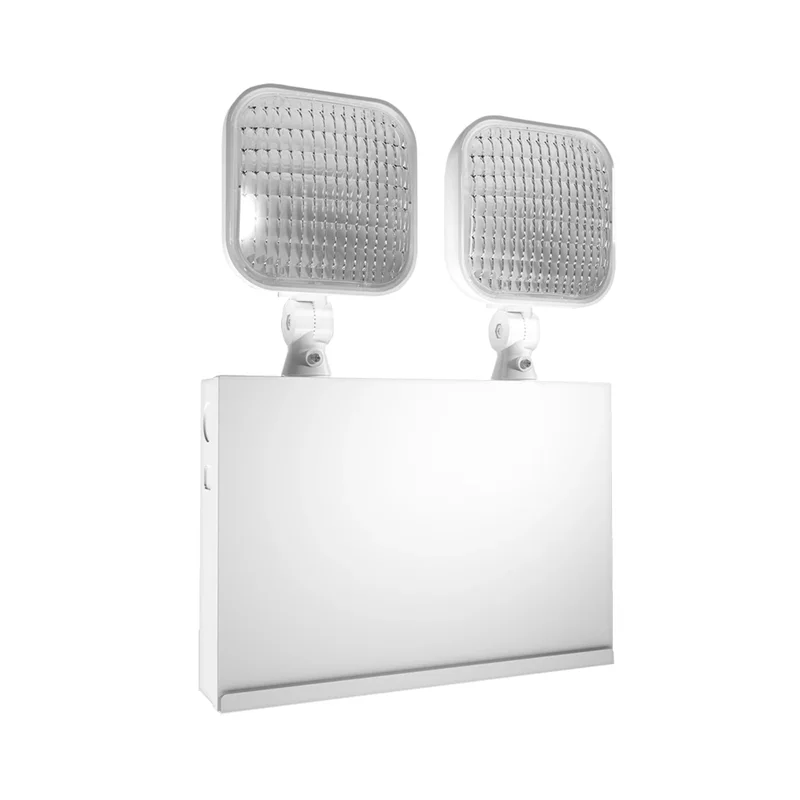

RAB EM-2H2RNY NYC Approved Emergency Light — 90-Minute Battery Backup, 120/277V
The EM-2H2RNY is a rugged emergency light featuring highly adjustable square heads and delivering 90 minutes of battery backup. Operating smoothly on a 120/277V input, this heavy-duty steel fixture is explicitly New York City Approved. It ensures strict compliance with urban fire codes, providing dependable egress routing and remote head capabilities for high-density indoor commercial spaces during unexpected power losses.
Key Features
- City Approval: New York City Approved for strict local code compliance.
- Housing Material: Heavy-duty 20-gauge steel construction.
- Emergency Runtime: Minimum 90 minutes of reliable backup illumination.
- Lamp Heads: Two highly adjustable square LED remote-capable heads.
- Remote Capacity: 27W capacity to run up to two additional remote heads.
- Testing Method: Manual integrated test switch and visual charge indicator.
- Input Voltage: Dual 120/277V capability for commercial circuits.
- Mounting: Universal mounting pattern for secure wall installation.
Performance & Illumination
Designed to provide maximum visual clarity across wide corridors, this unit is equipped with two square LED lamp heads. These ultra-bright heads can be independently aimed to cast a focused beam along the egress path, satisfying NYC’s specific safety requirements and effectively guiding occupants toward safety during chaotic emergency scenarios.
Electrical & Battery
The fixture operates efficiently on a commercial 120/277V circuit. In emergency mode, it automatically switches to a rugged 9.6V Nickel Cadmium battery that supplies 90 minutes of standby power for the onboard heads. A built-in 27W remote capacity allows the battery to simultaneously power up to two additional auxiliary heads. Routine building inspections are easily managed via the manual test switch.
Physical & Installation Details
Fabricated entirely from robust 20-gauge steel sheet metal, this fixture is built to resist physical damage and tampering in busy environments. Finished in a clean white powder coat, it utilizes a universal backplate mounting pattern for quick and secure wall installation above doorways and along commercial hallways.
Compliance & Safety
This emergency light is UL924 Listed and explicitly New York City Approved, meeting the rigorous standards of the NYC Department of Buildings. It is designed for use in environmentally controlled dry and damp indoor spaces, maintaining reliable operation in ambient temperatures between 32°F and 122°F (0°C to 50°C).
What’s Included
- (1) NYC Approved Emergency Light Unit
- Mounting Hardware
