PURALIGHT 2 LED Light Modules – DUOBRIGHT & TRIOBRIGHT | 12VDC | IP65 Rated

Description

Professional-Grade LED Modules for Channel Letters, Signage & Architectural Lighting

The PURALIGHT 2 LED Light Module family delivers superior performance, exceptional color rendering, and water-resistant durability for demanding commercial and residential installations. Available in DUOBRIGHT (2-chip) and TRIOBRIGHT (3-chip) configurations with multiple color temperatures and RGB color-changing capability.

Product Family Overview

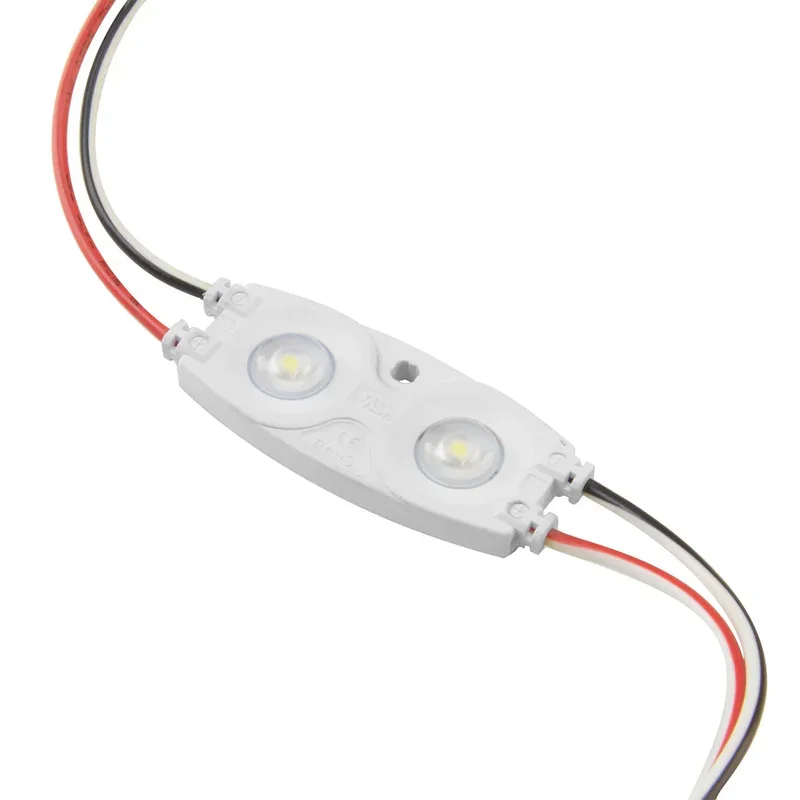

DUOBRIGHT Series (2 LEDs per module):

• 11000K Cool White – 58 lumens/module, 84 CRI
• Blue – 31 lumens/module, 84 CRI

TRIOBRIGHT Series (3 LEDs per module):

• 5000K Daylight White – 87 lumens/module, 84 CRI
• 11000K Cool White – 85 lumens/module, 84 CRI
• Blue – 45 lumens/module, 84 CRI
• RGB Color-Changing – 14 lumens/module (requires controller)

Universal Specifications

• Input voltage: 12VDC constant voltage
• Beam angle: 160° wide beam eliminates hot spots
• IP65 rated: Suitable for outdoor/wet locations
• Dimmable: Compatible with 12V dimming systems
• Strand configuration: 40 modules (single-color) or 25 modules (RGB)
• CRI: 84+ for exceptional color accuracy (white models)

Key Features

• Wide beam angle eliminates hot spots for uniform illumination
• 80+ CRI delivers superior color rendering for premium applications
• High lumen output ensures visibility and impact
• IP65 rating for indoor/outdoor durability
• 5-year warranty for long-term reliability

Ideal Applications

• Channel letter backlighting and halo illumination
• Architectural accent and feature lighting
• Signage and wayfinding systems
• Cove and perimeter lighting
• Decorative and color-changing installations (RGB)

Installation & Mounting

Each strand features 3M™ adhesive backing for quick, secure installation. Screw-mountable option available (screws not included). Maximum run lengths vary by model: ~20.3-20.7 ft for single-color DUOBRIGHT/TRIOBRIGHT, ~12.6 ft for RGB.

Compliance & Warranty

UL Recognized Component, RoHS compliant, CE certified. Backed by a 5-year manufacturer warranty for peace of mind on every project.

Select your preferred configuration from the options above to view detailed specifications and pricing.
