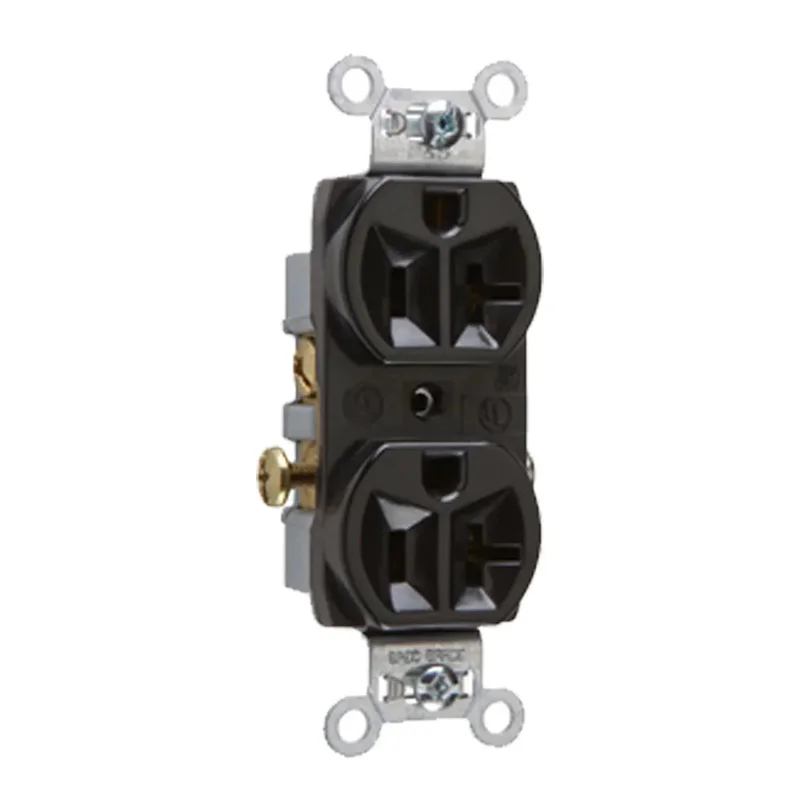

Pass & Seymour CR20BK 20A Commercial Spec-Grade Duplex Outlet, Black

Description

Pass & Seymour Commercial Spec-Grade Duplex Outlet — Black & Durable Design

The Pass & Seymour CR20BK is a 20A commercial spec-grade duplex outlet in a sleek black finish. This outlet is designed for 125V applications and features a robust construction with an impact-resistant nylon face and thermoplastic back body. It is equipped with a side wire configuration, making it ideal for commercial settings.

Key Features

• Voltage: Operates at 125V for standard electrical systems.
• Amperage: Supports up to 20A, suitable for commercial-grade use.
• NEMA Configuration: Standard duplex outlet for general-purpose applications.
• Tamper-Resistant: No, standard outlet design.
• Weather-Resistant: No, designed for indoor use only.
• Grade: Commercial spec-grade for high durability and performance.
• Dimensions: Measures 1.32 in. width, 2.64 in. height, and 0.78 in. depth.
• Certifications: UL 498 and cULus listed for safety and reliability.
• Corrosion Resistance: Features a plated steel strap for enhanced durability.
• Temperature Rise: Maximum 30°C temperature rise at full-rated current.
• Operating Temperature: Ranges from -40°C to +50°C for versatile environments.

Construction & Interface

This outlet features a standard duplex interface with a matte black finish. The impact-resistant nylon face and thermoplastic back body provide durability. Please note that the wallplate is sold separately.

Power & Electrical Performance

Designed for commercial applications, this outlet supports 20A and 125V, ensuring reliable power delivery. The auto-ground clip ensures a secure ground connection, while the side wire design facilitates easy installation.

Wiring & Installation

The CR20BK supports side wiring and accepts #14 to #10 AWG solid or stranded copper wire. It features an auto-ground clip for secure grounding and a corrosion-resistant plated steel strap for enhanced durability.
