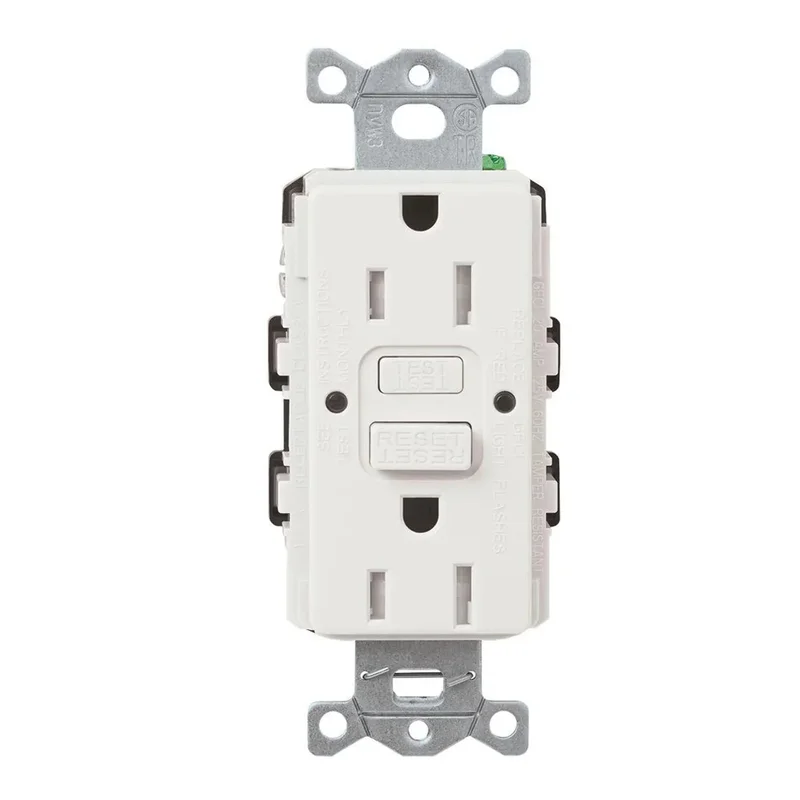

Lutron CAR-15-GFST-WH Claro 15A Tamper-Resistant Self-Testing GFCI Duplex Outlet, White

Description

Lutron Claro GFCI Duplex Outlet — White & Self-Testing

The Lutron CAR-15-GFST-WH is a 15A GFCI duplex outlet in a white finish, designed for enhanced safety with tamper-resistant features. It operates at 125V and is compatible with NEMA 5-15R configurations. This outlet includes continuous self-testing functionality to ensure reliable ground fault protection.

Key Features

• Voltage: Operates at 125V with a frequency of 60 Hz.
• Amperage: Rated for 15A, suitable for residential applications.
• NEMA Configuration: Compatible with NEMA 5-15R standards.
• Tamper-Resistant: Features internal shutters to prevent accidental insertion of foreign objects.
• Self-Testing: Automatically tests itself every 30 seconds to ensure functionality.
• LED Indicator: Provides visual feedback with green and red LED lights for power and fault conditions.
• Reverse Wire Safety: Prevents reset if wired incorrectly, enhancing safety.
• Compliance: Meets UL 943 and UL 498 standards, ensuring safety and reliability.
• Dimensions: Measures 1.47 in. width, 3.28 in. height, and 1.75 in. length.
• Certifications: cULus Listed, NOM Certified, and RoHS Compliant.

Construction & Interface

This GFCI outlet features a decorator-style interface and is constructed with durable materials for impact resistance. The white finish complements various interior designs. Note that the wallplate is sold separately.

Safety & Ground Fault Protection

Equipped with a tamper-resistant shutter mechanism, this outlet ensures safety by preventing accidental insertion of foreign objects. The self-testing feature continuously monitors the outlet’s functionality, disconnecting power if a fault is detected.

Wiring & Installation

The outlet supports both back and side wiring methods, accommodating wire gauges from #14 to #10 AWG. It includes a grounding screw and a robust mounting strap for secure installation.
