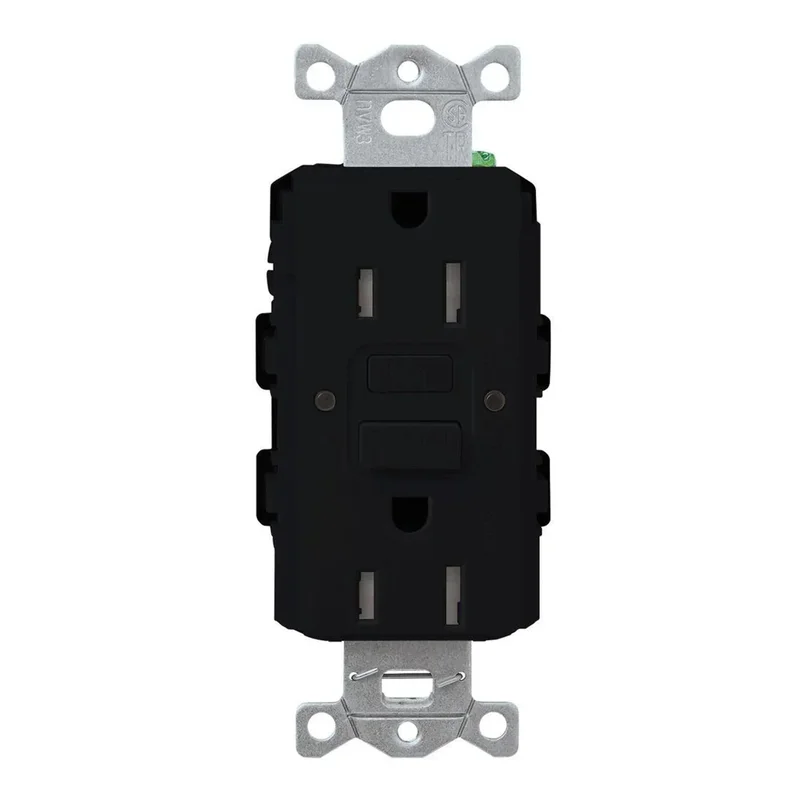

Lutron CAR-15-GFST-BL Claro 15A Tamper-Resistant Self-Testing GFCI Duplex Outlet, Black

Description

Lutron Claro GFCI Duplex Outlet — Black & Self-Testing

The Lutron CAR-15-GFST-BL is a 15A GFCI duplex outlet in a sleek black finish, designed for enhanced safety with tamper-resistant features. Operating at 125V, it is compliant with NEMA 5-15R standards, ensuring reliable performance in residential and commercial settings.

Key Features

• Voltage: Operates at 125V with a frequency of 60 Hz.
• Amperage: Supports up to 15A for standard electrical loads.
• NEMA Configuration: Compatible with NEMA 5-15R.
• Tamper-Resistant: Yes, includes internal shutters for safety.
• Self-Testing: Continuous self-test every 30 seconds to ensure functionality.
• LED Indicator: Bicolor LED for status indication.
• Reverse Wire Safety: Prevents reset if wired incorrectly.
• Dimensions: 1.47 in. W x 3.28 in. H x 1.75 in. L.
• Certifications: UL 943, UL 498, cULus Listed, NOM Certified.
• Environmental: Operates between -35°C to 66°C with up to 95% humidity.

Construction & Interface

This outlet features a decorator-style interface compatible with NEMA designer wallplates. Constructed with impact-resistant materials, it ensures durability. Note: The wallplate is sold separately.

Safety & Ground Fault Protection

Equipped with a tamper-resistant shutter mechanism and continuous self-testing, this outlet ensures safety by disconnecting power if GFCI protection is compromised. The LED indicator provides clear status updates.

Wiring & Installation

Supports both back and side wiring with internal clamps for secure connections. Compatible with #14 to #10 AWG wire, it includes a grounding screw for safe installation.
