Professional Level 2 EV Charging for Modern Homes

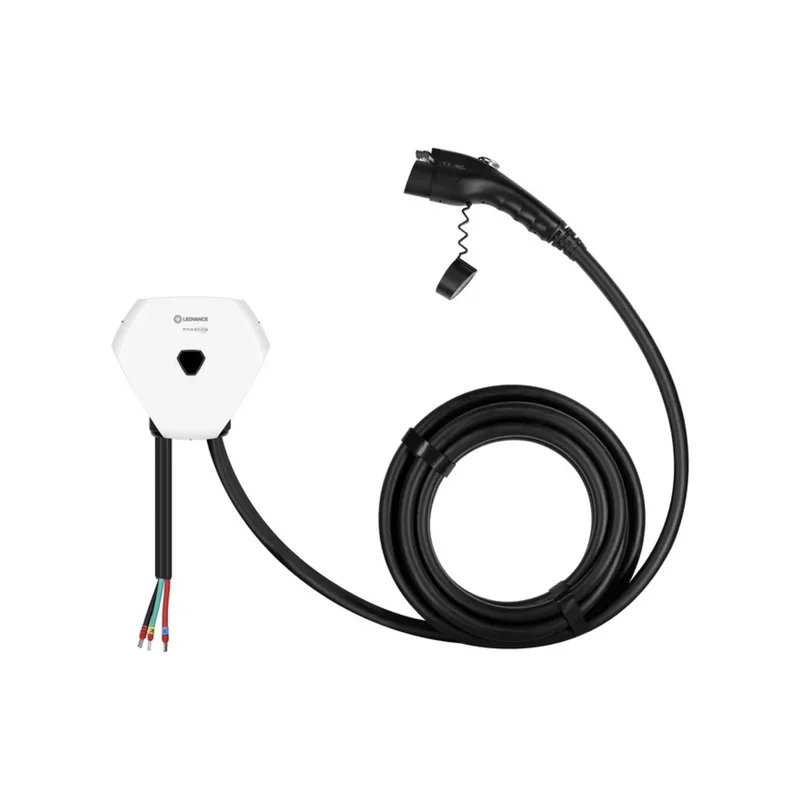

Experience premium quality and safety with the genuine LEDVANCE PHASE EV 48-amp Level 2 residential charging station (Model 78146). This professional-grade smart EV charger combines WiFi-enabled convenience with powerful 11.5kW fast charging, adding up to 42 miles of range per hour. Featuring a weather-resistant NEMA 4X enclosure, 25-foot charging cable, and the free SYLVANIA Smart WiFi App for complete control, this charger delivers the perfect balance of performance, safety, and modern connectivity for single-family homes, multi-family residences, and small commercial applications.
LEDVANCE PHASE EV 78146 Features
- Authentic LEDVANCE Quality: Genuine PHASE EV collection with full 3-year manufacturer warranty and NLB Trusted Warranty Program support
- Level 2 Fast Charging: 11.5kW maximum power output at 240 VAC delivers up to 42 miles of range per hour of charge
- Adjustable Output Current: 1-48 amps adjustable via SYLVANIA Smart WiFi App for flexible power management
- Universal EV Compatibility: SAE J1772 Type 1 connector works with all electric vehicles
- Extended 25ft Charging Cable: Extra-long cable with integrated cable management cradle for neat storage and flexible parking positions
- Smart WiFi & Bluetooth Connectivity: Built-in WiFi (802.11 b/g/n/2.4GHz) and Bluetooth for remote monitoring and control
- SYLVANIA Smart WiFi App: Multiple charge modes, real-time energy monitoring, charging history tracking, scheduled charging for off-peak rates, delayed charging, and charge-by-schedule functionality
- Plug & Play Operation: Vehicle can charge without app; Real Time Charging Mode enables full app control to initiate and monitor sessions
- Over-the-Air Updates: OTA upgradeable firmware keeps charger current with latest features and optimizations
- Weather-Resistant Design: Rugged NEMA 4X enclosure with IK10 impact protection and IP65 ingress protection
- Wide Operating Range: Functions reliably from -22°F to 122°F (-30°C to 50°C) for year-round performance
- Dynamic LED Status Indicator: Clear visual feedback shows standby mode, device connectivity, charging in progress, charge complete, and fault alerts
- Comprehensive Safety Protections: Standard over-current protection, ground fault protection, and over-voltage protection
- Complete Installation Kit: Includes charger mounting plate, wall bracket, charging handle holster with cable wrap, mounting screws, and 28-inch pre-wired 6AWG input cable
- ENERGY STAR Certified: EVSE v1.1 certified for maximum efficiency and utility rebate eligibility
- Multi-Certified: cETLus listed, ETL and UL2594 compliant, NEC625 compliant, FCC Part 15 Class B (ICES-003), RoHS certified
LEDVANCE PHASE EV 78146 Specifications
Brand: LEDVANCE | Sylvania
Collection: PHASE EV
Model Number: 78146
UPC: 046135781469
Charging Mode: Level 2 (AC Level 2)
Power Output: Maximum 11.5kW at 240 VAC
Power Supply Voltage: AC Level 2, 208/240V
Rated Input Current: 48A Max (adjustable 1-48A via app)
Rated Frequency: 60Hz
Vehicle Connection: SAE J1772 (Type 1 connector)
NEMA Configuration: Universal J1772
Charging Cable Length: 25ft (7.6m)
Primary Wire Gauge: 6AWG
Input Cable: Pre-wired 28-inch 6AWG cable
Power Requirements: 208V (single phase), 240V (single phase), 60 Amp Double Pole Breaker
Installation: Hardwired by licensed electrician to local junction box
Wireless Connectivity: Built-in WiFi (802.11 b/g/n/2.4GHz), Bluetooth
Firmware: Over-the-air (OTA) upgradeable
App Control: SYLVANIA Smart WiFi App (iOS/Android)
Environmental Rating: NEMA 4X enclosure, IK10 impact protection
Ingress Protection: IP65
Operating Temperature: -22°F to 122°F (-30°C to 50°C)
Storage Temperature: -22°F to 122°F (-30°C to 50°C)
Dimensions (W × H × D): 8.3in × 7.7in × 3.3in (211mm × 196mm × 84.5mm)
Safety Protections: Over-current (standard), Ground fault (standard), Over-voltage (standard)
Status Indicator: Dynamic LED (standby, connectivity, charging, complete, fault)
Certifications: cETLus listed, ETL, UL2594 compliant, NEC625 compliant, FCC Part 15 Class B (ICES-003), RoHS, ENERGY STAR (EVSE v1.1)
Warranty: 3-Year Limited Product Warranty
