Description
Keystone’s XFit LED Sports Light is a powerful fixture that’s ideal for venues such as stadiums, driving ranges, municipal parks, and other locations with high pole illumination needs. Precision-crafted optics ensure proper uniform lighting. Sports Light includes a distinctive feature: ability to remote mount the driver, allowing for on-site flexibility and lower EPA wind ratings. This remote capability not only makes the fixture easy to install but simplifies maintenance. Lamps can be placed up to 50 meters (164 feet) high, but drivers can be placed in a bank at the base level. When it’s time to replace the driver, service is just a matter of accessing at the base – not getting on a lift. Each fixture also includes a pre-installed yoke mount bracket with optional slipfitter mount is also available (sold separately) to suit your mounting preference.

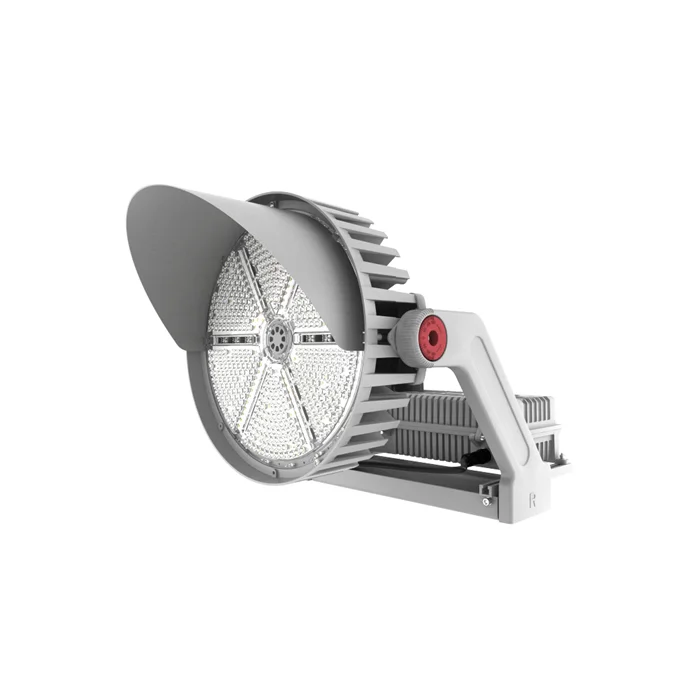

The KT-SLFLED500HV-S1-30-YM-750-VDIM is a 500 watt high voltage LED Sport flood light that provides 70,000 lumens of 5000K daylight white light with a 30 degree beam angle and the following features:
- 277-480V operation
- 0-10V dimmable
- Heavy-duty die-cast aluminum housing in gray finish offers a durable and modern aesthetic
- Glare shield included in packaging
- Comes with shorting cap and integrated NEMA/ANSI C136.41 7-pin twist-lock receptacle
- Preinstalled with yoke mount bracket, optional slipfitter mount sold separately
- Designed for install as a single assembly or with remote driver box
- Multiple beam angle options (30° standard, 20° and 40° optional)
- Power factor: >0.95
- Integrated 6kV surge protection
- Fixture-mountable laser accessory available for fixture aiming also available (see ‘frequently bought together’ products)
- IP65 wet location rated
- DLC Premium
- Operating temperature: -40º to 122º F
- 100,000 hour rated
