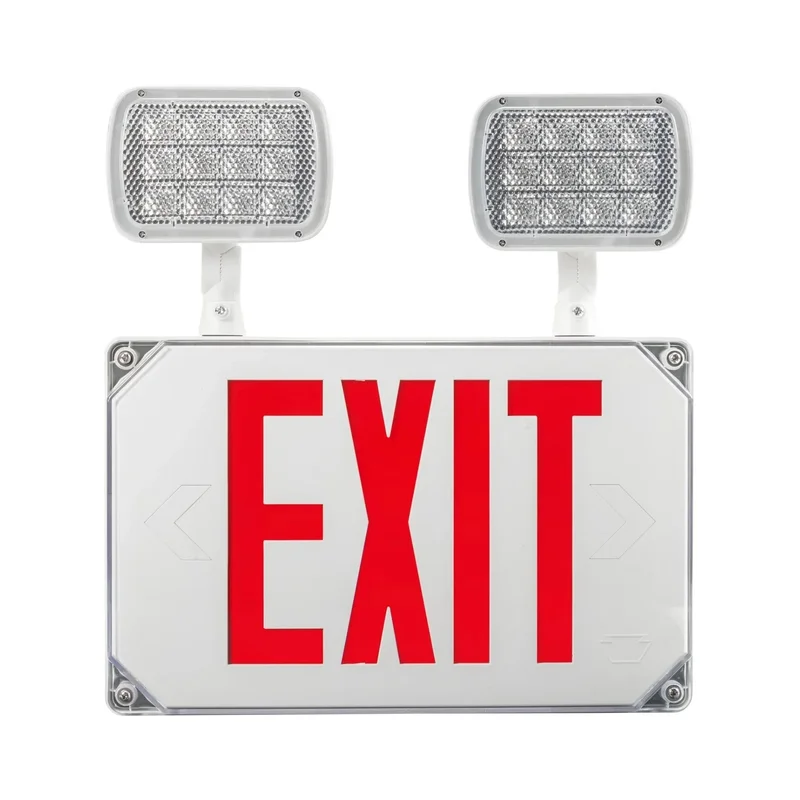

Keystone KT-EC-TP3-WH3RW-SD Exit Combo — 90-Minute Emergency Capability with 120/277V Input
The Keystone KT-EC-TP3-WH3RW-SD is a versatile exit combo unit featuring red LED lettering and a 90-minute battery backup. Designed for wet locations, this unit is UL 924 compliant and operates on 120/277V input. Ideal for ensuring safety in emergency situations.
Key Features
- Red LED Lettering: Provides clear and visible exit indication with integrated red LEDs.
- Dual Face Configurations: Includes both single and double faceplates for adaptable installation.
- Surface Mounting: Supports side and back mounting options for ease of installation.
- Battery Type: Integrated Nickel-Metal Hydride battery with 1200mAh capacity.
- Recharge Time: Fully recharges in 24 hours, ensuring readiness for the next emergency.
- Test Switch: Built-in test switch and charge indicator for easy maintenance checks.
- Thermoplastic Housing: Durable construction with UL 94 5VA flame rating for enhanced safety.
- Operating Temperature: Functions effectively in temperatures ranging from 0°C/32°F to 40°C/104°F.
Performance & Illumination
This exit combo delivers 300 lumens of 6500K white light, ensuring high visibility. The red LED lettering is designed for optimal clarity in emergency situations.
Electrical & Battery
Operating on 120/277V, the unit features a Nickel-Metal Hydride battery that recharges in 24 hours. It includes a test switch for routine maintenance and is not remote capable.
Physical & Installation Details
Constructed from thermoplastic, the unit measures 11.61 in length, 2.52 in width, and 13.35 in height. It includes universal J-box mounting pattern for easy installation.
Compliance & Safety
UL certified for wet locations, the unit meets UL 924 standards and has a UL 94 5VA flame rating, ensuring safety and compliance in various environments.
What’s Included
- Single and double faceplates
- Back/solid faceplate
- Mounting hardware
