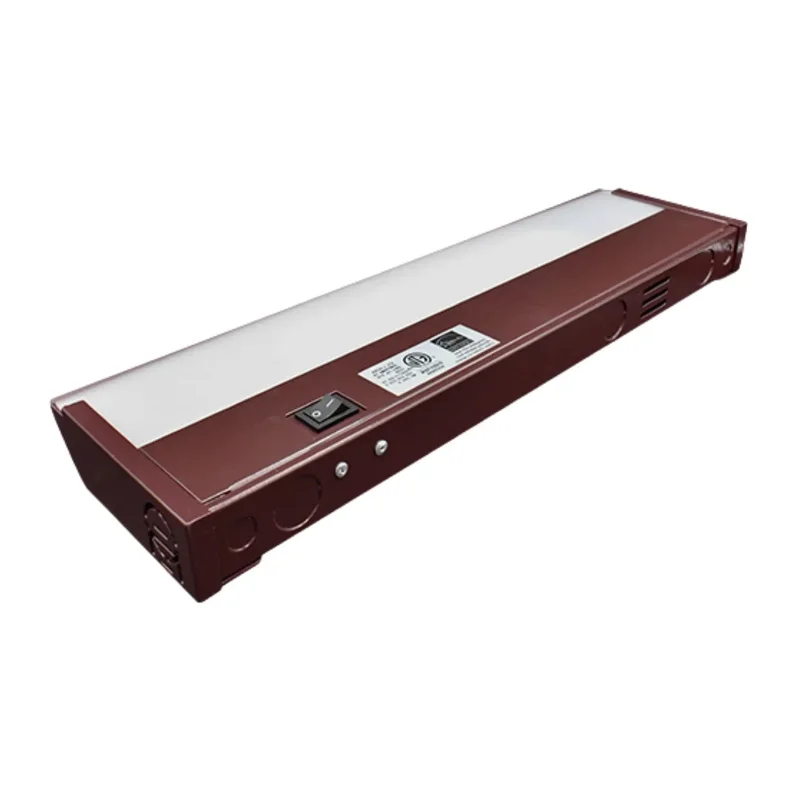

GM Lighting TunableTask Under Cabinet Light Bar — Bronze & Selectable CCT
The GM Lighting UCTUN-24-BZ is a bronze under cabinet light bar designed for versatile task lighting. This fixture features a powder-coated aluminum housing and a polycarbonate lens, measuring 24 in. in length. It operates on 120V and delivers up to 1125 lumens with integrated LED technology.
Key Features
- Selectable CCT: Easily switch between 2700K, 3000K, 3500K, 4000K, and 5000K for customized lighting.
- Dimensions: Measures 24 in. long, 3.63 in. wide, and 0.94 in. high.
- Voltage: Operates on 120V, eliminating the need for additional power supplies.
- Wattage: Consumes 14 watts for energy-efficient operation.
- Lumens: Provides up to 1125 lumens for bright illumination.
- CRI: Features a CRI of 90+ for accurate color rendering.
- Lifespan: Designed to last with a 5-year warranty.
- Installation: Includes captive mounting screws and Wago connectors for easy setup.
- Linkability: Units can be joined securely with connectors for continuous runs.
- Dimmable: Compatible with Triac dimmers for adjustable light levels.
Core Design & Profile
This under cabinet light bar features a slim profile with a powder-coated aluminum housing and a polycarbonate lens. It is available in a bronze finish and is Dry Rated for indoor use.
LED Illumination & Performance
With a maximum output of 1125 lumens, this fixture consumes 14 watts and offers a CRI of 90+. The Selectable CCT feature allows for a range of color temperatures from 2700K to 5000K.
Power, Wiring & Linkability
The UCTUN-24-BZ operates on 120V and can be directly wired. It includes multiple knockouts and connectors for easy installation and linking capabilities.
Where This Fixture Works Best
- Kitchen countertops
- Workstations
- Display cabinets
- Office desks
- Retail shelving
What’s Included
- UCTUN-EZ-1 connector
- Conduit fitting
- Captive mounting screws
