Description

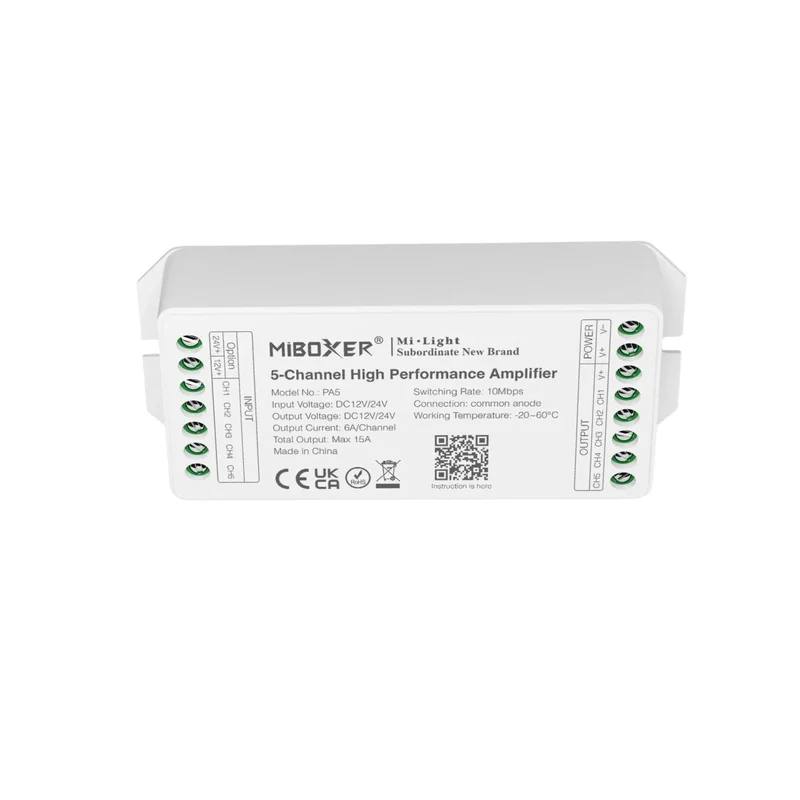

The GM Lighting RPT-UNV-5CH is a 5-channel high-performance amplifier (repeater) designed to expand the power output and extend the signal range of GM Lighting’s universal RF control systems for low-voltage LED lighting. This essential component allows a single control signal to manage larger or multiple runs of LED lighting installations, such as LED tape light, while maintaining precise control across all channels.
Features
- 5-Channel Control Architecture: Handles up to five independent channels of control, supporting single-color (1 channel), tunable white/CCT (2 channels), RGB (3 channels), RGBW, or RGB + tunable white (4-5 channels) configurations
- Universal Voltage Compatibility: Operates on both DC 12V and 24V systems, automatically matching input to output voltage
- High Current Capacity: Delivers 6A per channel with 15A total maximum output across all channels
- Signal Extension: Extends control signal range from main controller to remote LED loads
- Flexible Channel Usage: Use 1 to 5 channels as needed for the application; not all channels required
- Class 2 Operation: 60W maximum on 12V power supplies, 96W maximum on 24V power supplies for each control module
- Compact Design: 4.53″ × 1.89″ × 1.06″ (115mm × 48mm × 27mm) footprint for easy installation
Specifications
- Model Number: RPT-UNV-5CH
- Input Voltage: DC 12V / 24V
- Output Voltage: DC 12V / 24V (matches input)
- Output Current: 6A per channel
- Total Output Maximum: 15A (across all 5 channels)
- Number of Channels: 5 independent channels
- Operating Class: Class 2 (60W max @ 12V, 96W max @ 24V per control module)
- Compatible Controllers: GM Lighting CM-RF-UNV-5CH and universal RF control systems
- Certifications: FCC, CE, cULus listed
Applications
- Extending control range for large-scale LED tape light installations
- Multi-zone architectural lighting with centralized control
- Commercial and residential under-cabinet, cove, and accent lighting
- Retail display lighting requiring synchronized color and intensity control
- Hospitality and entertainment venue dynamic lighting systems
- Museum and gallery exhibition lighting with tunable white capability
- Any application requiring amplification of low-voltage LED control signals beyond the main controller’s capacity
Note: Connect only +12V or +24V to the proper repeater input terminal, not both. All LED loads and input voltages must match for proper operation. Refer to installation instructions and operational settings chart for specific LED color wiring configurations.
