Description

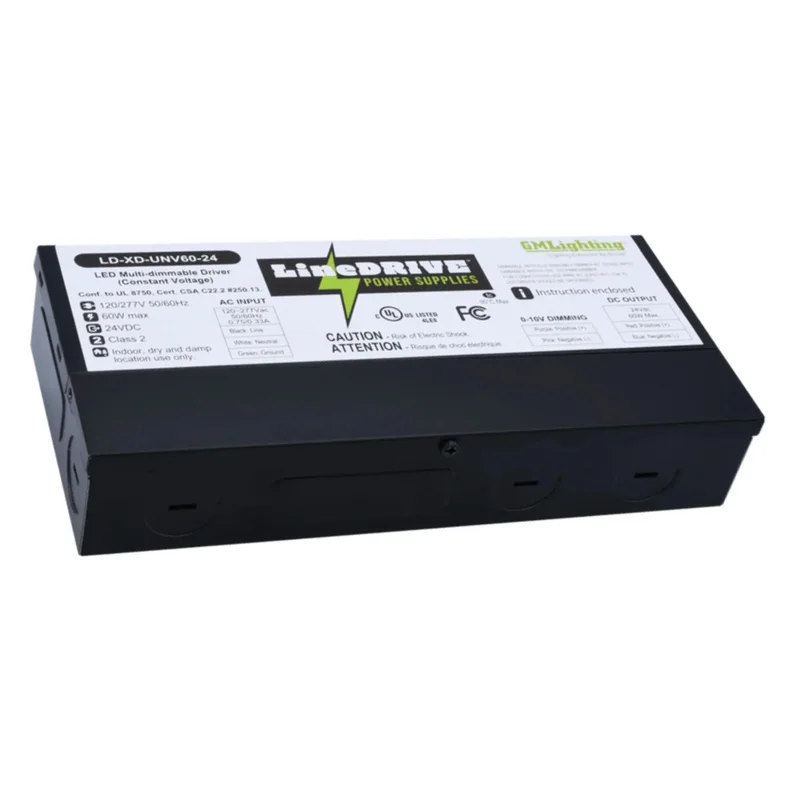

GM Lighting LineDRIVE LD-XD-UNV60-24 60W LED Driver — 24V DC
The GM Lighting LineDRIVE LD-XD-UNV60-24 is a robust 60W LED Driver designed for optimal performance in various lighting applications. With an output of 24V DC, this Constant Voltage driver supports a wide input range of 120-277V AC, making it suitable for diverse installation environments. The driver features Multi-Protocol Dimming, compatible with Triac, ELV, MLV, and 0-10V systems, allowing for precise lighting control. Its Integrated Junction Box ensures easy installation and compliance with electrical codes.
Key Features
- Power Output: Delivers a maximum power of 60W for reliable LED lighting.
- Output Voltage: Consistent 24V DC output for stable lighting performance.
- Dimming Protocols: Supports Triac, ELV, MLV, and 0-10V dimming for versatile lighting control.
- Minimum Load: Recommended minimum load of 10% for optimal dimming performance.
- Dimensions: Compact design with dimensions of 8.29 in. L x 4.10 in. W x 1.59 in. H.
- Enclosure Type: Durable steel enclosure with integrated junction box for easy wiring.
- IP Rating: Rated for indoor dry and damp locations with IP20 protection.
- Class 2: UL Class 2 compliant for low voltage output safety.
- Certifications: UL listed, FCC compliant, and Title 24 (JA8) certified for energy efficiency.
Physical Design & Installation
The driver features a black powder-coated steel enclosure with integrated junction box and knockouts, facilitating easy installation and wiring.
Dimming & Controls
Compatible with multiple dimming systems, including Triac, ELV, MLV, and 0-10V. Minimum load requirement is 10% for optimal dimming performance.
Performance & Build
Includes over-current, over-voltage, and over-temperature protection. UL Class 2 compliant with IP20 rating for indoor use.
Typical Applications
- Commercial lighting installations
- Residential LED lighting systems
- Architectural lighting projects
- Retail lighting environments
