Description

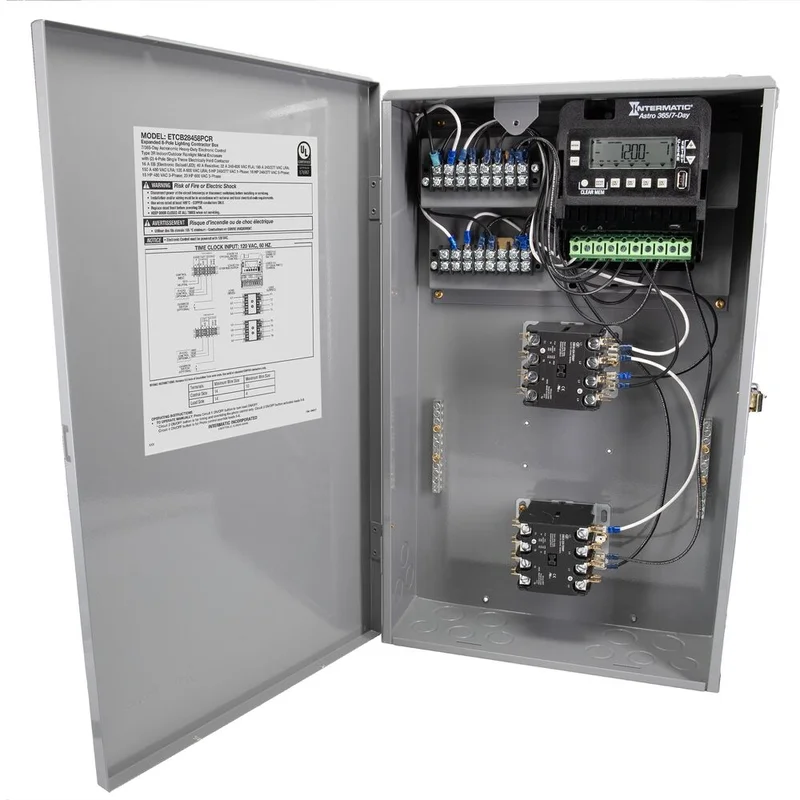

The ETCB28458PCR Expanded 8-Pole lighting Contractor Box provides an easy-to-install solution for a variety of application needs. The Contractor Box comes with a pre-installed Astronomic timer with 7-day, holiday/exception period scheduling, USB for Schedule transfer and Backup, an electrically held 40 A contactor, as well as inputs for overrides and surge protective devices.
- 7-Day/365 Day Astronomic Scheduling
- Up to 96 Scheduling set points
- Up to 50 Holiday/Exception Period set points
- USB port for backing up or transferring schedules
- Built-in (2)40 A 4-Pole contactor for more robust loads.
- Input for optional “Timed” photo control override
- Input for other types of switches/sensors
- Terminals for adding Surge Protection
- 100-hour supercapacitor eliminates the need for battery replacement
- Requires 120 VAC 60 Hz for powering the control
