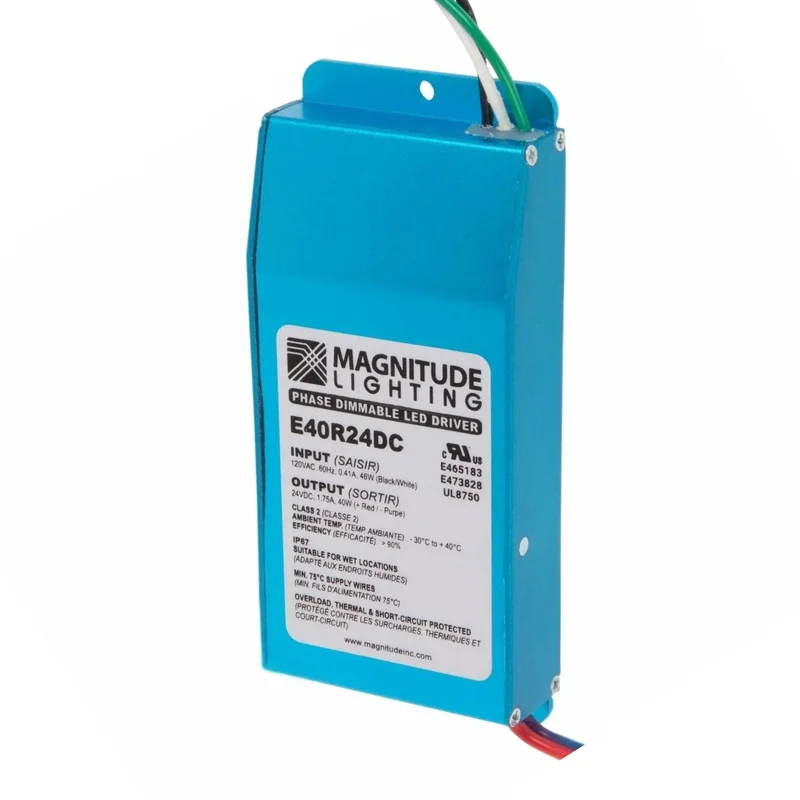

Magnitude Lighting E-Series 40W LED Driver — 24V DC
E40R24DC is a Magnitude Lighting E-Series LED Driver rated 40W with 120V AC input and 24V DC Constant Voltage output. It is forward-phase (TRIAC) dimmable down to 1% and requires an 8W minimum load for smooth dimming. This driver is Class 2 and uses a sealed aluminum housing with flying leads (no Integrated Junction Box).
Key Features
- Power: 40W max load
- Input Voltage: 120VAC ±10%, 50/60Hz
- Output Voltage: 24V DC
- Output Type: Constant Voltage, single channel
- Dimming: Forward-phase (TRIAC) dimmable to 1%
- Minimum Load: 8W (for smooth dimming)
- Dimensions: 4.92 in. L x 2.20 in. W x 0.79 in. H
- Enclosure Type: Sealed aluminum case with flying leads; junction box: No
- IP Rating: IP67
- Certifications: UL8750 Recognized; UL 879; Class 2
Physical Design & Installation
Compact anodized aluminum housing designed for concealed mounting. Wiring is via flying leads (18AWG primary, 14AWG secondary); there is no integrated wiring compartment or knockouts since it does not include an Integrated Junction Box. Flange mounting is provided with one hole and one half-hole.
Dimming & Controls
Supports forward-phase (TRIAC) dimming and can dim down to 1% with compatible dimmers. For smooth dimming performance, maintain an 8W minimum connected LED load. Output is regulated 24V DC constant voltage for 24V LED tape and other 24VDC fixtures within the 40W maximum load.
Performance & Build
High-efficiency design (>90% at 24VDC) helps reduce operating temperature. Protection includes short circuit and over-voltage auto-reset. Rated Class 2 and sealed to IP67 for wet-rated installations.
Typical Applications
- 24V LED tape and linear LED runs
- Wet-location accent lighting
- Sign and display lighting (UL 879 applications)
- Indoor or outdoor architectural details
